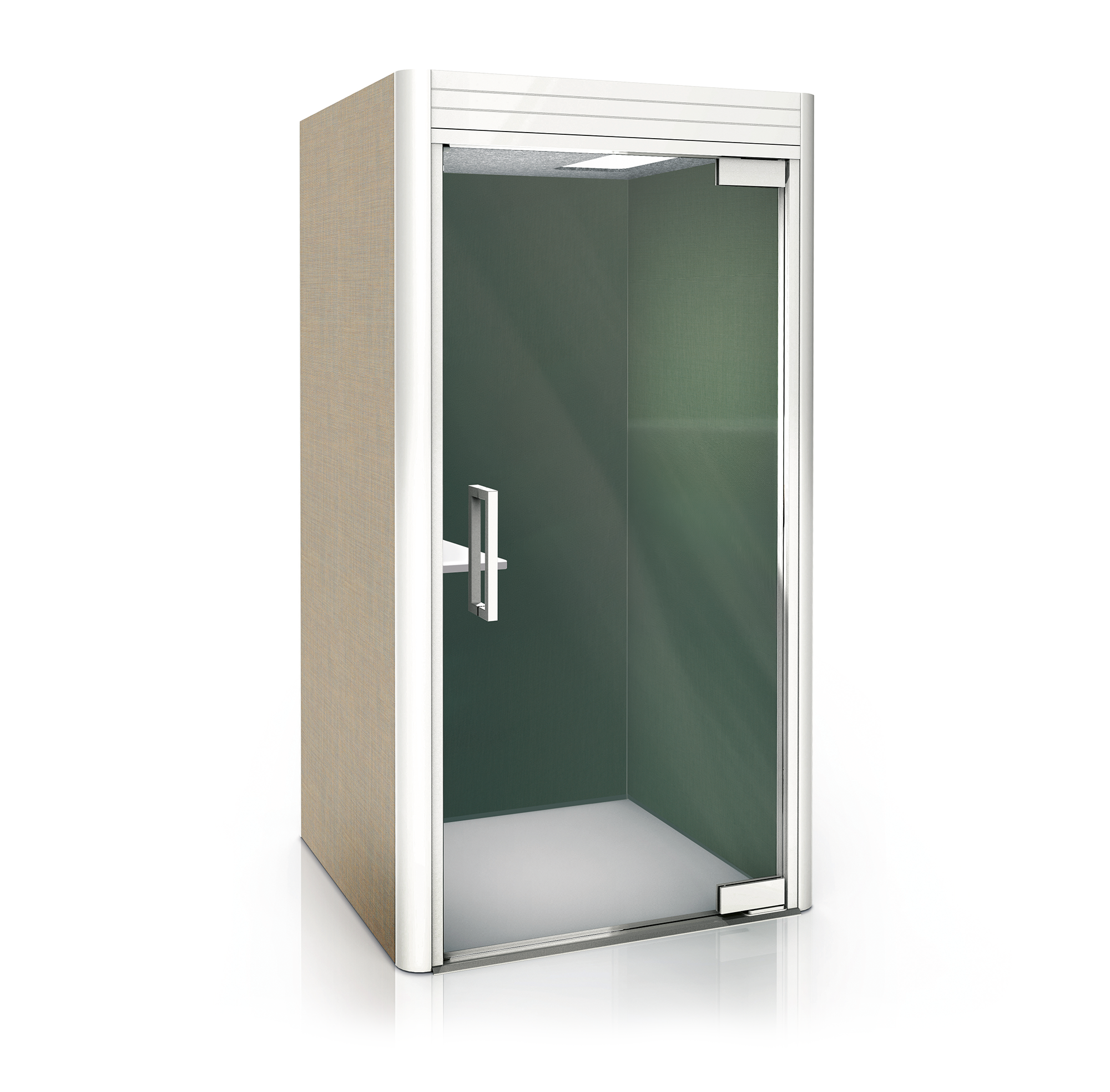

Line Phone Booth
Peace in a Booth
The Line Phone Booth provides a peaceful environment for phone calls, video conferences, interviews, private meetings and a silent retreat for uninterrupted work. The booth is designed with your office in mind.
Don’t worry though, users will still be able to hear the important ring of an alarm from inside the booth.
The Knowledge
Kelvin (K) relates to the colour temperature of light, while Lux (lx) measures luminance, indicating the brightness.
An airflow gap is essential for maintaining a comfortable and healthy environment within the acoustic pod, helping to dissipate any heat generated within the pod and ensures that air circulation is sufficient for occupants.
Power into this pod will come through the back wall, this is another reason a 50mm airflow gap is essential.
Why choose Line?
Functional
Equipped with everything you would need to provide the best user experience
Modular
Create easy assembled modular private spaces in a compact form
Inclusive
DDA compliment on entry
Private
Allowing employees to have the privacy needed in a simple way
You might also be interested in...
The perfect environment for...
Confidential Meetings
Quiet Working
Creativity
Quality airflow
Specification
Dimensions
Exterior
1140mm (w) x 1140mm (d) x 2250mm (h)
Interior
1000mm (w) x 1140mm (d) x 2250mm (h)
Doorway
930mm (w)
Weight
230kg
Features
Output AC
240 VAC, 3.15 Amp, 50-60 Hz
Lighting
LED ceiling light 300Lux/5000K
Options
Environmental Options
Light switch
Variable light controller
Variable fan controller
Variable light & fan controller
Touch screen panel, light & fan controller
Power Options
Under shelf power unit. Phase (1x UK 1x CAT 6 Data)
Under shelf power unit. Phase (1x UK 1x TUF)
Above shelf power unit. UNO (2x UK 1x TUF)
Feature Options
Right handed door
Pivot hinged door with lever handle (right or left)
Powder coated aluminium frame
Customised manifestation
Angled corner posts
